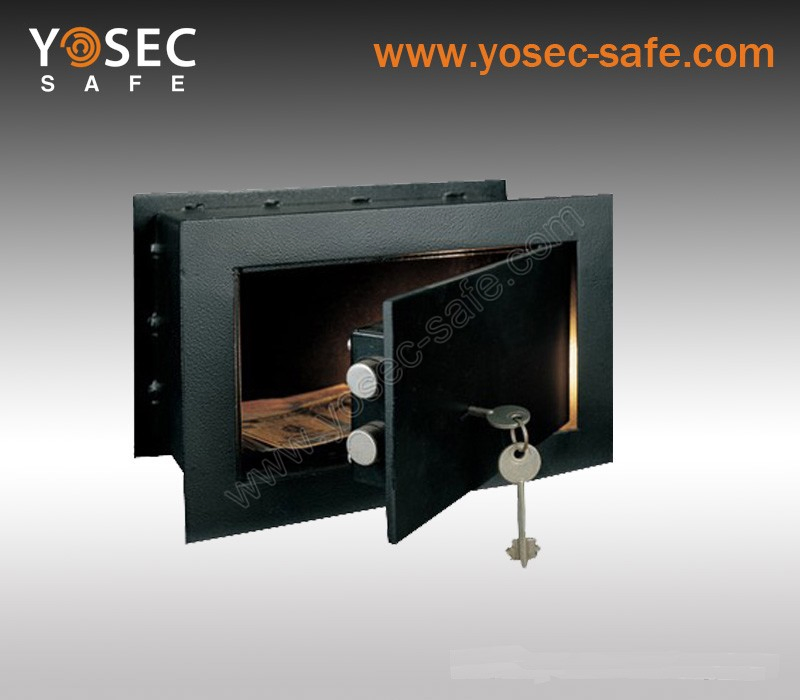

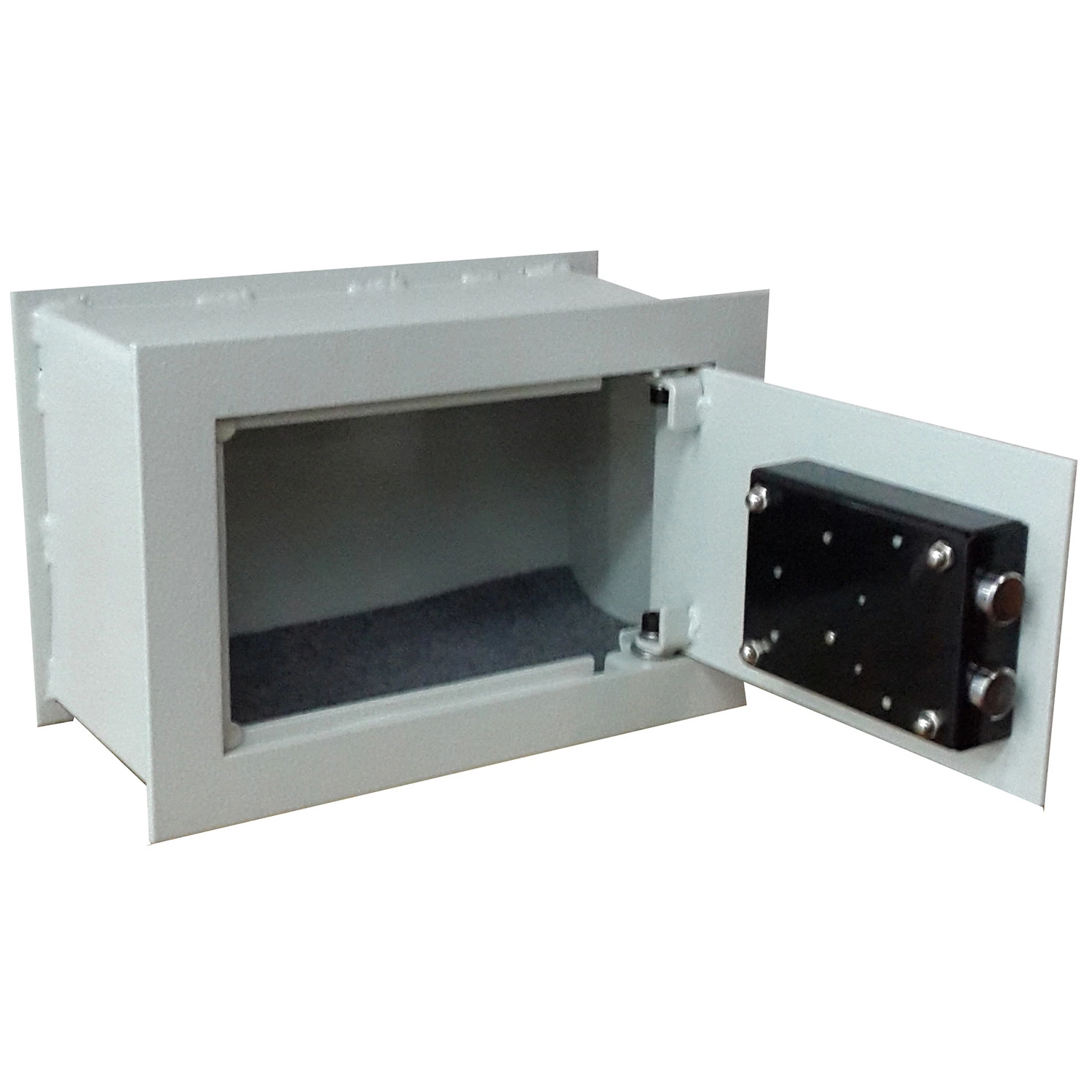

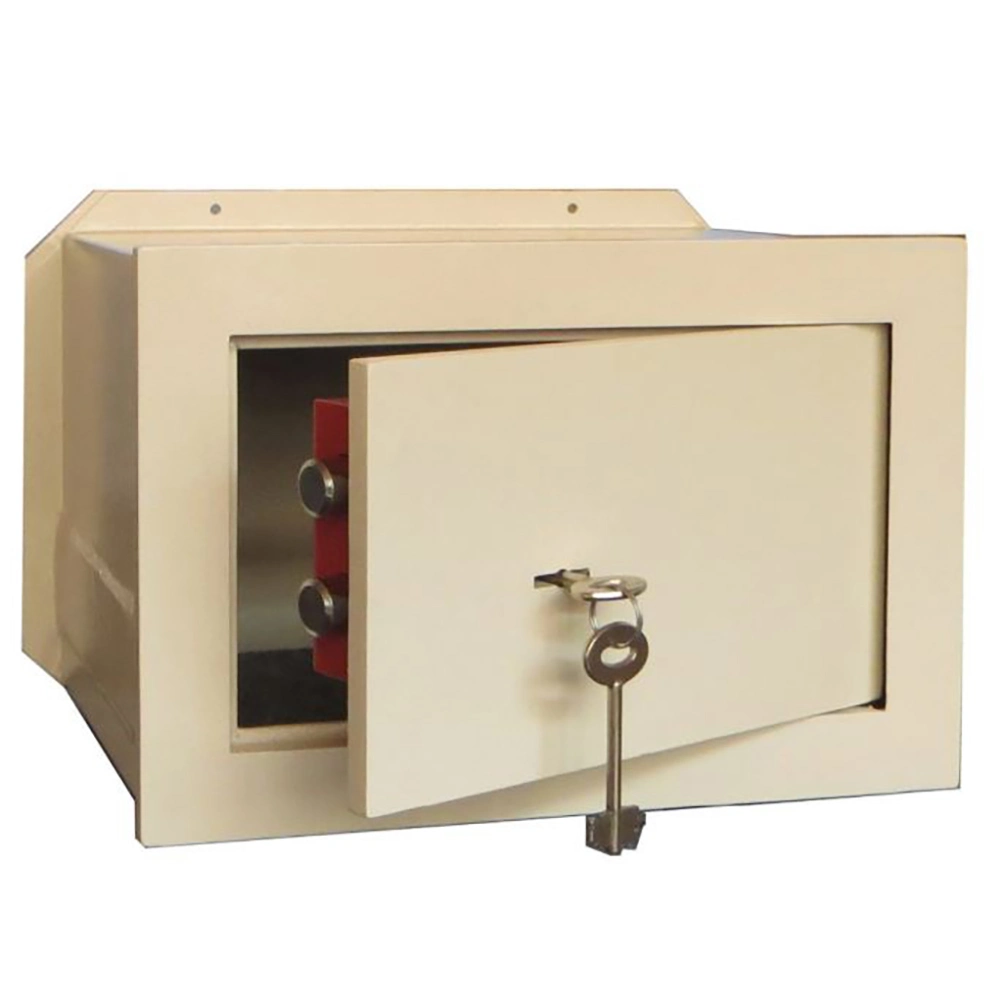

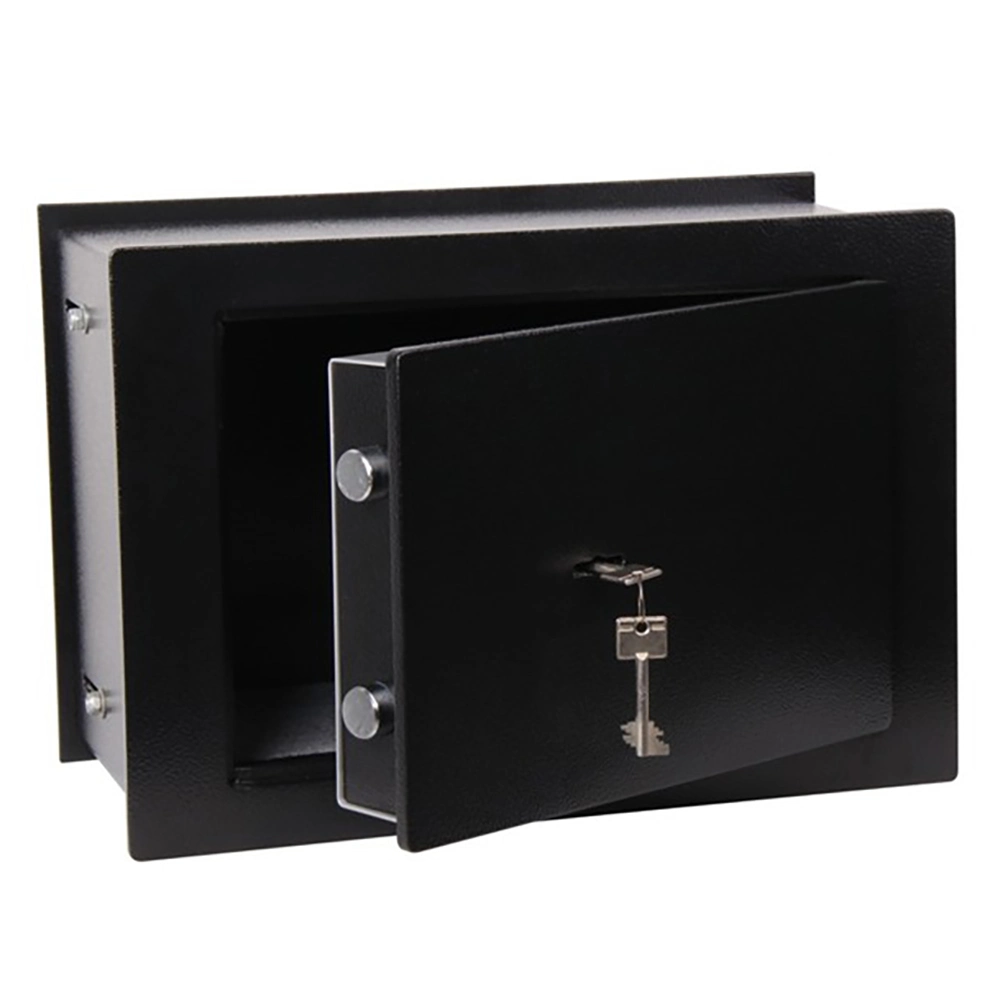

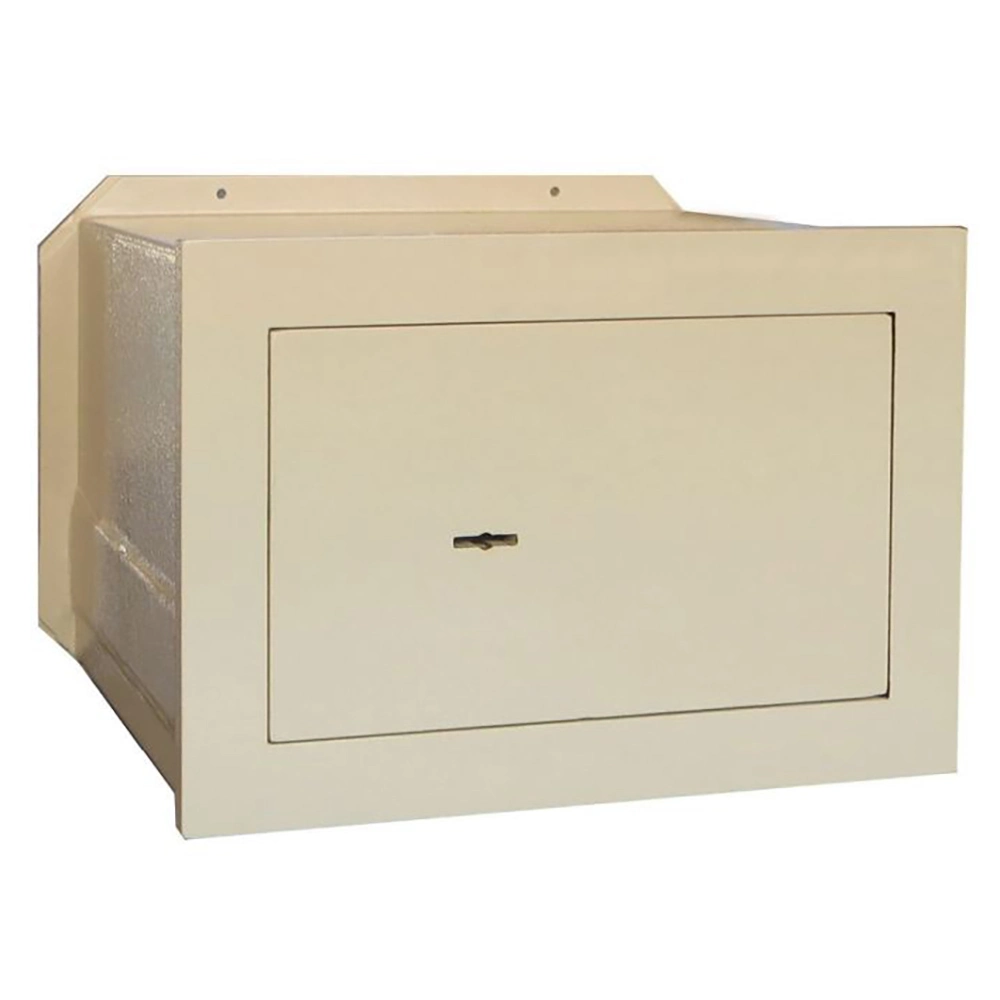

China Factory Hidden in-Wall Safe with Double Bit Key Lock

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications
Model NO.
HM-18W
Product Type
Wall Safe
Lock Type
Mechanical / Double Bitted Key
Material
Solid Steel
Exterior Size
180 x 260 x 150 (mm)
Weight
7 KG
Security Level
B1 / Vdma B
Certification
CE, RoHS
Locking Bolts
2 PCS
Finish
Powder Coat Finish
Interior Carpet
Supplied
Capacity
10L
Product Description

The HM-18W Hidden Wall Safe is specifically designed for discreet security in residential or commercial environments. Designed to be installed directly into a wall, it remains concealed behind paintings or furniture, offering an extra layer of protection by remaining out of sight.

Technical Specifications:

  • External Dimensions: 180 (H) x 260 (W) x 150 (D) mm
  • Packing Dimensions: 225 (H) x 330 (W) x 170 (D) mm
  • Locking Mechanism: High-security double bitted key lock (supplied with 2 keys)
  • Body Construction: Solid steel, fully welded body
  • Door Construction: 3mm thick steel door with 10mm thick treated steel frame
Key Features & Security
  • Advanced Laser Cutting: Utilizes laser technology for uniform coupling lights and a perfect fit between door and frame.
  • Anti-Pry Design: Solid steel door featuring strong interior hinges to prevent break-in attempts.
  • Six-Blade Combination: Equipped with a six-blade system with combinations on twelve independent teeth.
  • Chromed Locking Pins: Features rotating, independent anti-read locking pins in chromed steel.
  • Robust Protection: Double-bit safety key lock EN Class 1 compliant with high closing force.
  • Durable Finish: Rust-proof surface treatment with high-quality powder coating.
  • Easy Installation: Pre-drilled anchor holes and built-in flange for seamless wall mounting.
  • Optional Shelving: Features 1 adjustable shelf option for organized storage.
Frequently Asked Questions
How is this safe installed?
This safe is designed to be recessed into a wall. It includes a built-in flange to cover the wall cutout and pre-drilled anchor holes for secure mounting into the wall structure.
What happens if I lose the keys?
The safe is supplied with 2 high-security double-bitted keys. It is recommended to keep these keys in separate, secure locations outside of the safe itself.
Is the safe fireproof?
No, the HM-18W is designed primarily as a security wall safe for burglary protection and concealment. It does not carry a fireproof rating.
Can the lock be upgraded?
While this model features a mechanical double-bitted key lock, electronic lock options are available upon request depending on your security preferences.
What can I store in a 10L capacity safe?
A 10L volume is ideal for protecting cash, jewelry, passports, legal documents, and small electronic devices.
What is the thickness of the steel?
The safe features a 3mm thick steel door leaf and a 10mm thick treated steel frame, providing robust resistance against physical attacks.
