Basic Information
Application
Home, Commercial
External Size
H610xW508xD508mm
Thickness
Door: 4mm / Body: 4mm

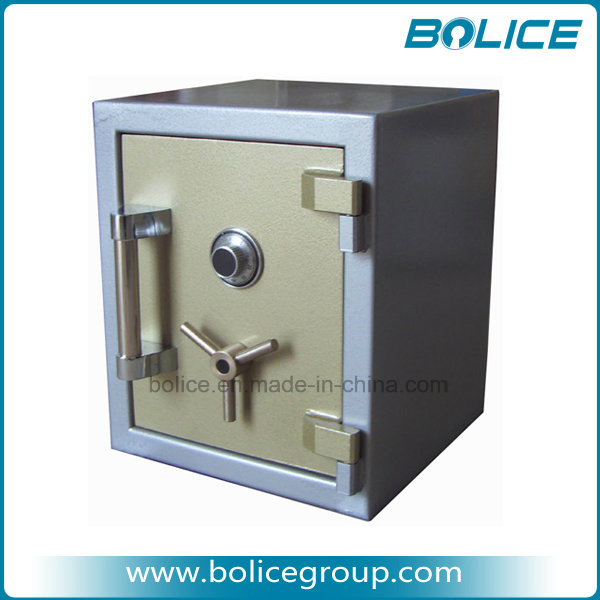

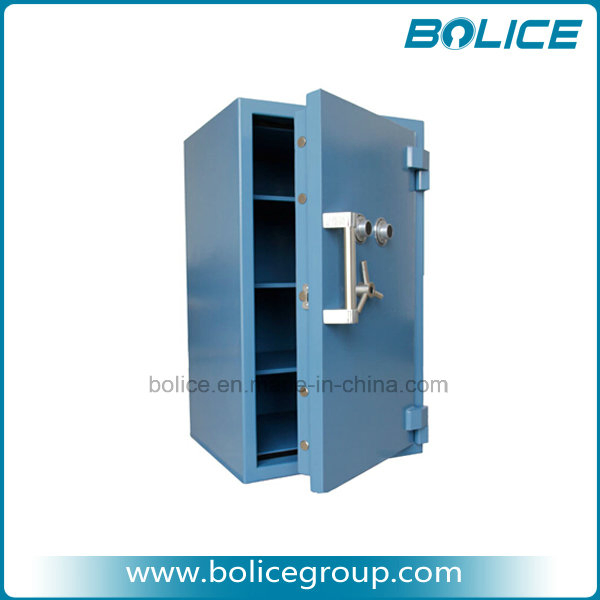

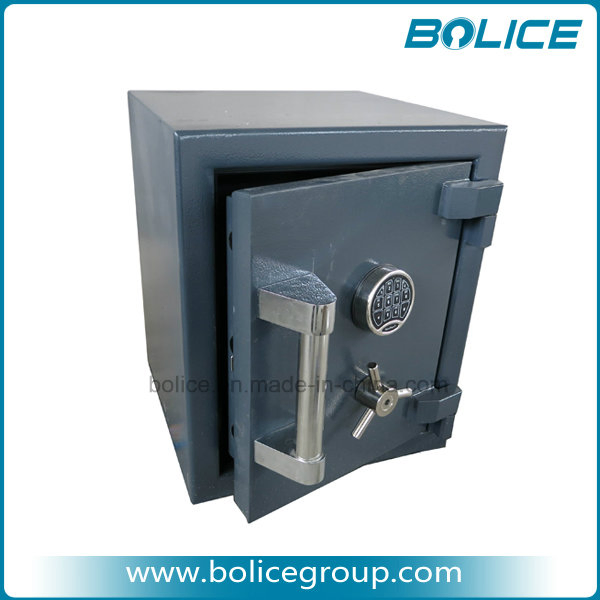

High Security Fire and Burglary TL Rated Safe Cabinet
🛡️
Fireproof Protection
Equipped with fireproof safe filing filled with concrete cement for superior heat resistance.
🏗️
Robust Construction
Multi-layered thickness: Inner Body 6mm, Outer Body 4mm, and Door 4mm.
🔐
Enhanced Security
Features a specialized relocking device and drill-resistant hard plate to prevent unauthorized access.
Technical Specifications
| Model |
External Size (mm) |
Internal Size (mm) |
Weight |
Door |
Body(mm) |
20'FCL (PCS) |
| (H x W x D) |
(H x W x D) |
(KGS) |
(mm) |
Outside |
Inside |
| STCC181412 |
610x508x508 |
457x356x305 |
350 |
4 |
4 |
6 |
40 |
| STCC251816 |
787x610x610 |
635x457x406 |
540 |
4 |
4 |
6 |
24 |
| STCC352420 |
1041x762x711 |
889x610x508 |
880 |
4 |
4 |
6 |
14 |
| STCC452420 |
1295x762x711 |
1143x610x508 |
1020 |
4 |
4 |
6 |
14 |
| STCC552420 |
1549x762x711 |
1397x610x508 |
1220 |
4 |
4 |
6 |
14 |
| STCC652820 |
1803x864x711 |
1651x711x508 |
1490 |
4 |
4 |
6 |
14 |
| STCC723623 |
1981x1067x787 |
1829x914x584 |
1970 |
4 |
4 |
6 |
10 |
| STCC844026 |
2286x1168x864 |
2133x1016x660 |
2610 |
4 |
4 |
6 |
6 |
Product Display
Frequently Asked Questions
What does "TL rated" mean for this safe cabinet?
A TL rating indicates that the safe is tested to resist professional burglary attempts using common hand tools, picking tools, mechanical or electrical tools, and grinding points for a specific duration.
How is the fire resistance achieved?
The safe utilizes a fireproof filing material made of concrete cement between the inner and outer steel plates, providing a dense thermal barrier against high temperatures.
What security features prevent drilling?
This model is equipped with a drill-resistant hard plate specifically designed to protect the critical locking mechanism components from drill attacks.
What is a relocking device?
A relocking device is a secondary security feature that automatically triggers and locks the bolts into place if the primary lock is attacked or tampered with.
Can these safes be used for commercial purposes?
Yes, with weights ranging up to 2610kgs and high security ratings, these cabinets are ideal for both residential high-value storage and professional commercial security needs.
What are the primary materials used in construction?
The safe is constructed using high-grade steel plates for both the internal and external body, with a door thickness of 4mm and reinforced inner walls.
