Basic Specifications
Application
Home, Commercial
Locking System
Digital Code + Knob
Product Features

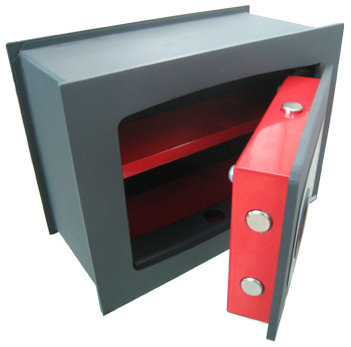

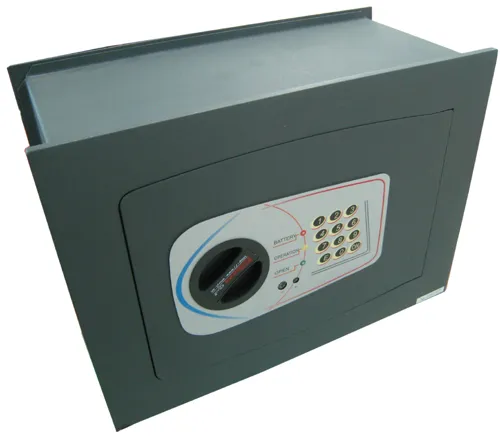

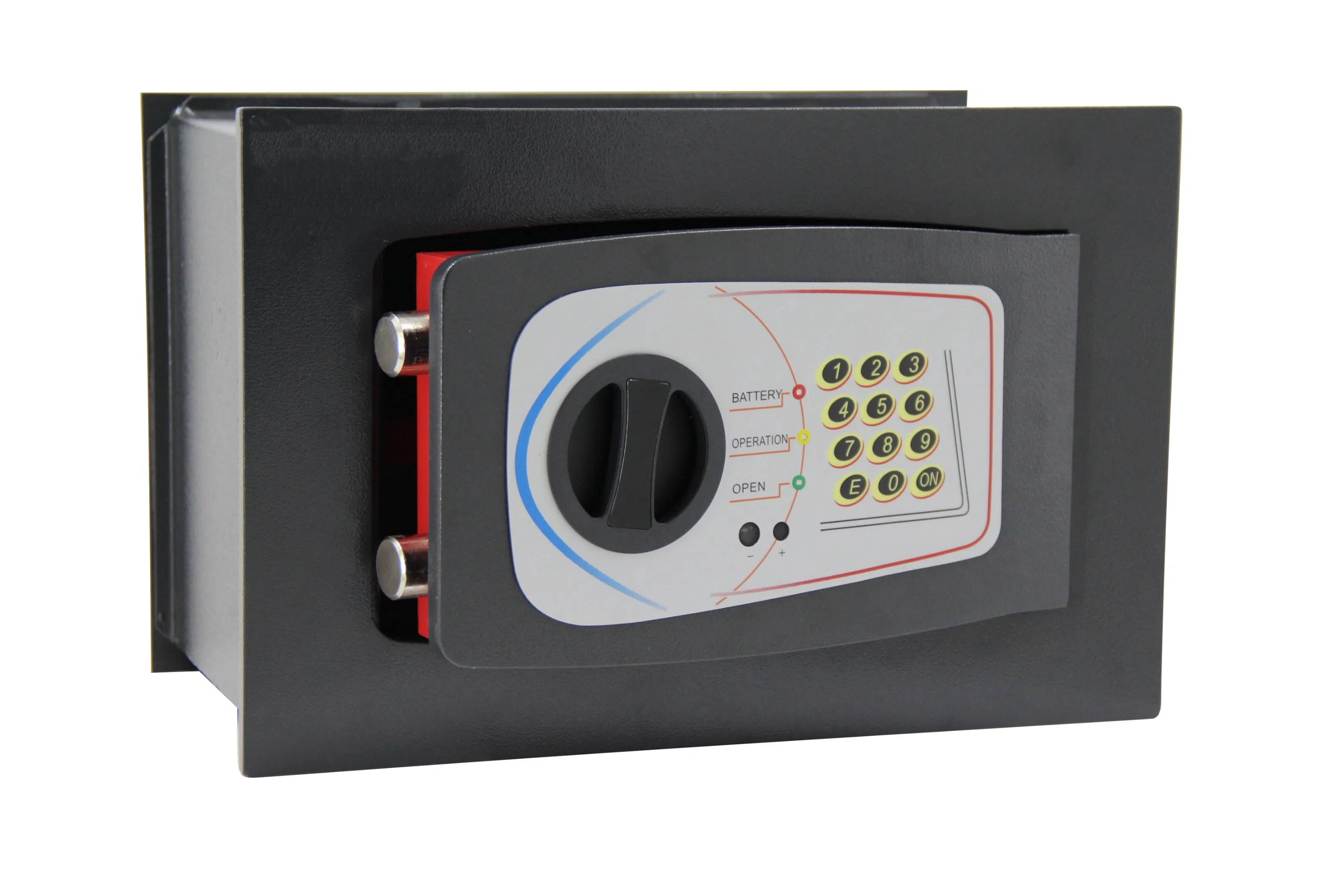

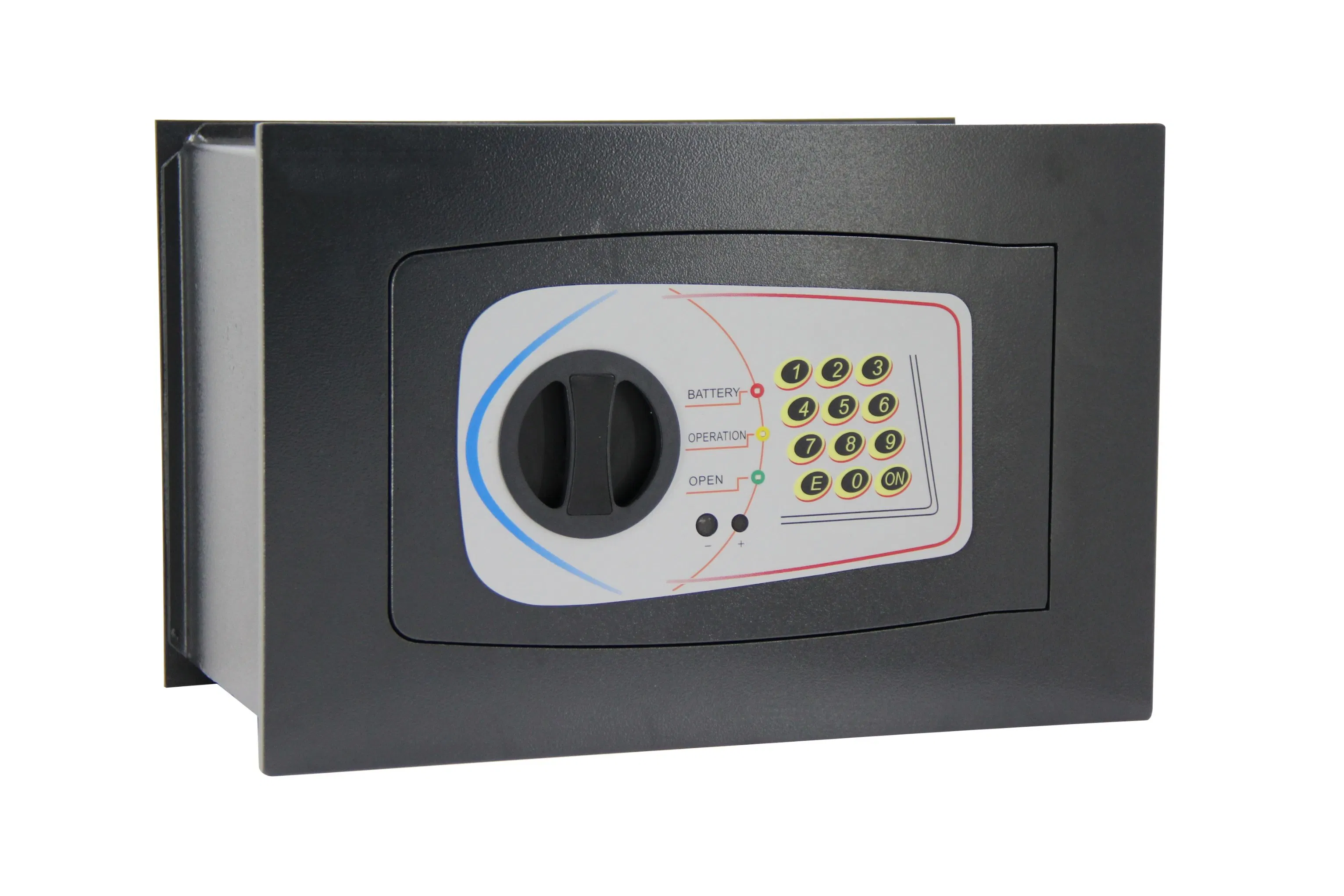

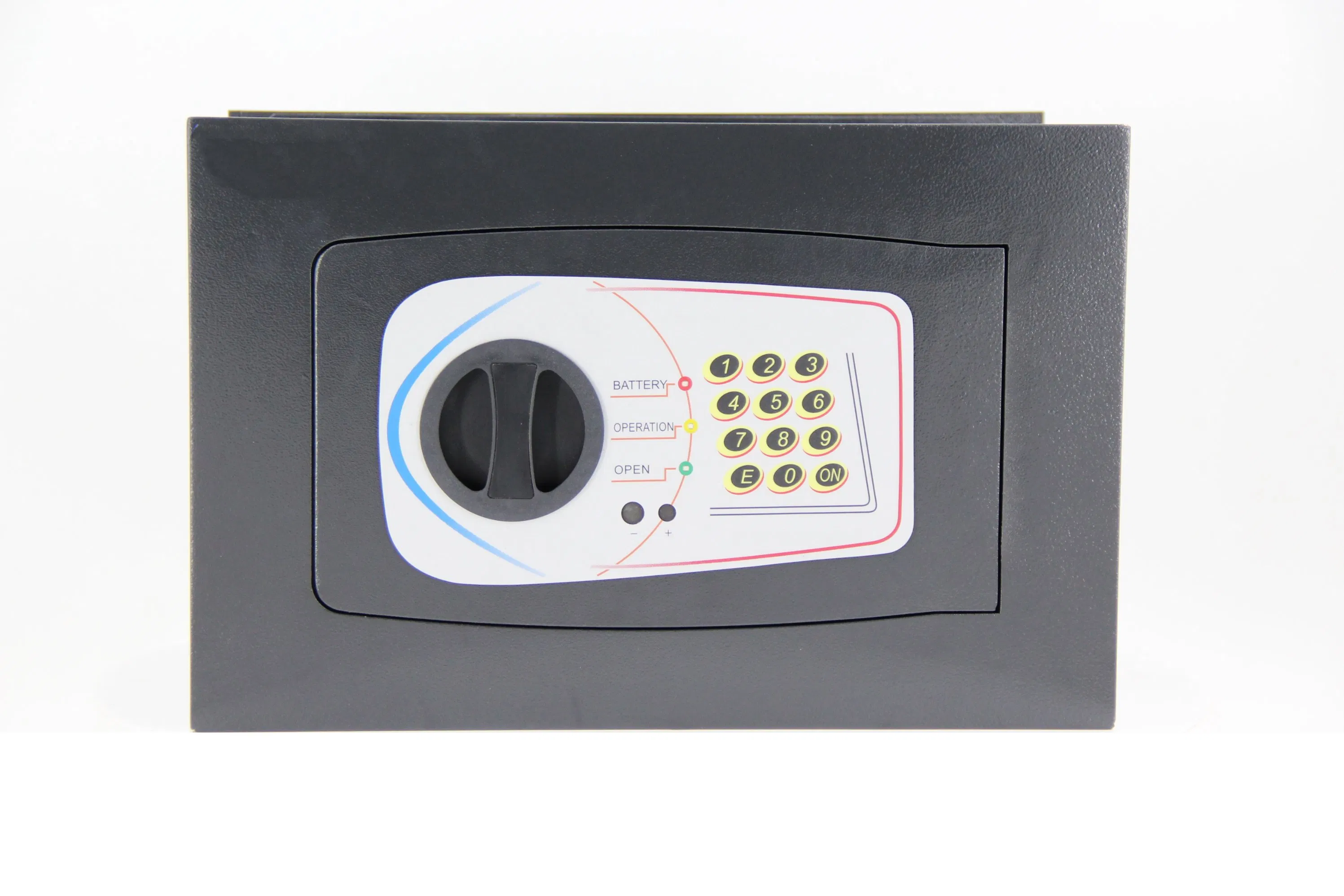

Wall mounted laser cutting anti-drill steel safe (RL300E2)
- Two levels of code management: Guest code (3-8 digit) & Master code (3-8 digit)
- Door with plane frame featuring advanced Laser Cutting technology
- Smooth automatic motor drive operation
- Secure double locking bolts system
- Durable epoxy powder coating finish
- User-friendly plastic film keyboard
- Mounting bolts and floor carpet included for easy installation
- Security alarm: 3 incorrect entries buzzer and auto-locking function
- Wide opening: Door opens to more than 100 degrees
- Power supply: Four pieces of 1.5V batteries with low battery precaution
Product Visuals
Model Comparison & Technical Data
| Model |
External Size (mm) |
Packing Size (mm) |
Body (mm) |
Door (mm) |
Weight (kg) |
Loading Quantity (pcs) |
| H*W*D |
H*W*D |
Thickness |
Thickness |
Net |
20' Container |
40' Container |
| RL230E2 | 230*350*220 | 275*385*235 | 2 | 10 | 17 | 1029 | 1470 |
| RL280E2 | 280*380*200 | 325*415*235 | 2 | 10 | 19 | 921 | 1315 |
| RL300E2 | 300*410*200 | 345*445*235 | 2 | 10 | 22 | 795 | 1136 |
| RL340E2 | 340*460*200 | 385*495*235 | 2 | 10 | 27 | 648 | 925 |
| RL420E2 | 420*460*220 | 465*495*255 | 2 | 10 | 31 | 495 | 806 |
| RL520E2 | 520*360*220 | 565*395*255 | 2 | 10 | 32 | 546 | 781 |
Frequently Asked Questions
How many user codes can the RL300E2 safe manage?
The safe features two levels of code management: a Guest code and a Master code, both programmable from 3 to 8 digits.
What security measures are in place for incorrect code entries?
The safe is equipped with an alarm buzzer that triggers after 3 incorrect entries, followed by an auto-locking function to prevent unauthorized access.
What is the construction material and thickness of the safe?
The safe is made of solid anti-drill steel. The body has a thickness of 2cm (20mm) and the door is reinforced with a thickness of 10cm (100mm).
Is the installation hardware included with the safe?
Yes, each safe comes with mounting bolts for secure installation and a floor carpet to protect your valuables inside.
How is the safe powered and what happens if the battery is low?
It is powered by four 1.5V batteries. The system includes a low battery precaution feature to alert you when batteries need replacement.
Does the door allow for wide access to the interior?
Yes, the door design allows it to open to an angle of more than 100 degrees, providing easy access to stored items.
